- Modelo / Tipo:
- Descripción:

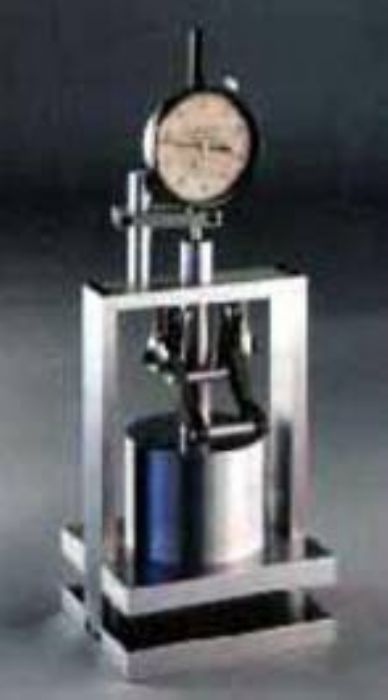

The improved Model B tester from Benz has automated the test process with microprocessor-controlled data acquisition. Designed to provide the expected internal bond strength for various types of paper, coated products and paperboard, this instrument measures the impact energy imparted to the specimen. The machine consists of a base, sample-preparation press, tape dispenser, dual-range pendulum (0 to 0.325 ft. lbs. and 0 to 0.650 ft. lbs.) and Digital Display. Internal Bond software is available. The specimen is held between the base and the anvil of the test fixture, using double-faced pressure-sensitive tape. One-inch-square specimens are prepared under calibrated pressure to insure uniform adhesion to the fixture and the aluminum angle. The impact force of the pendulum head striking the aluminum angle is displayed on the PC. precise results without operator interpretation - assures material quality time-saving reports - test results displayed on computer screen with previous results for comparison. increase testing-budget buying power - affordable, reliable design simple, fast testing - quick-release sample set-up tests a variety of products - user-selectable parameters The Model B also includes five sample bases, five sample angle holders, a knife-blade assembly, and pressure-sensitive tape. Model B Specifications Standard Options Capacity 0-0.325 ft. lbs. 0-0.650 ft. lbs. Sample press range 50, 100, 150, 200, PSI n/a Height 26 in n/a Width 24 in n/a Depth 12 in n/a Weight 95 lbs n/a Crate Dimensions 15x26x30 Shipping Weight 200 lbs Units ft-lb J Power requirements 120V/60Hz/1 phase/2 amps 220V/50 Hz/1 phase, 1 amp Data Acquistion Digital Display RS-232/USB PC WINDOWS BASED SOFTWARE Accuracy Better than 0.1% of the full scale range n/a Reproducibility +/- 1% n/a .
- Nombre de la Marca:
BENZ
- País:
MEXICO
 |
|
